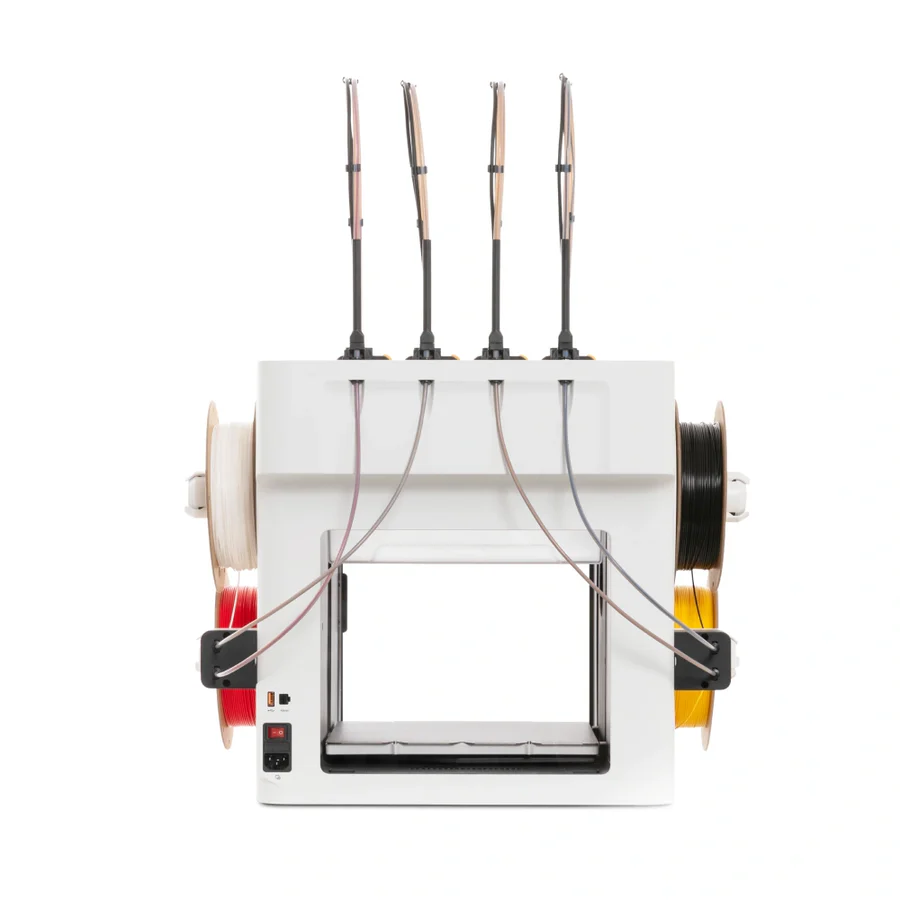

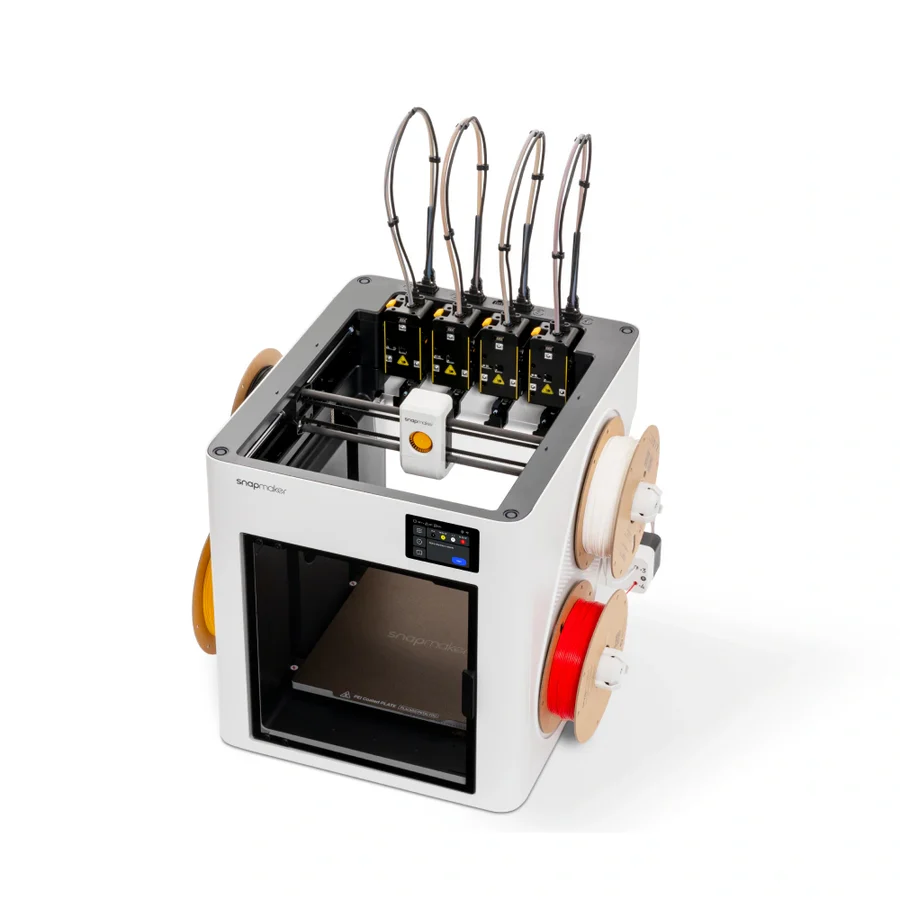

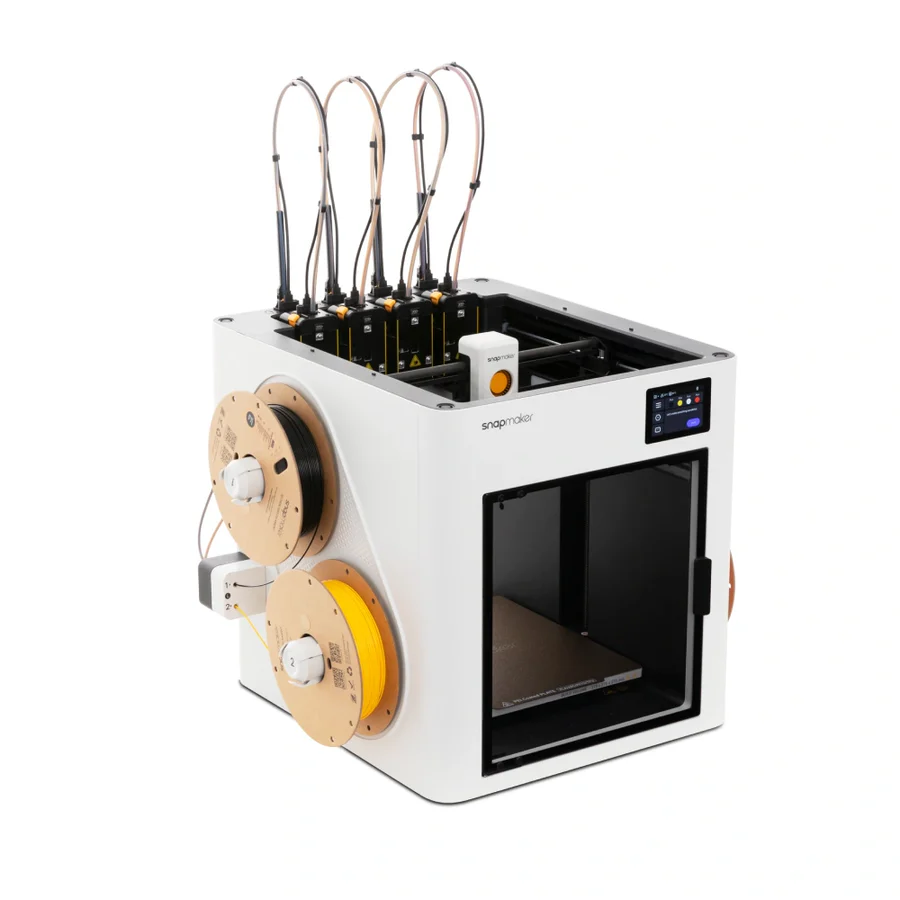

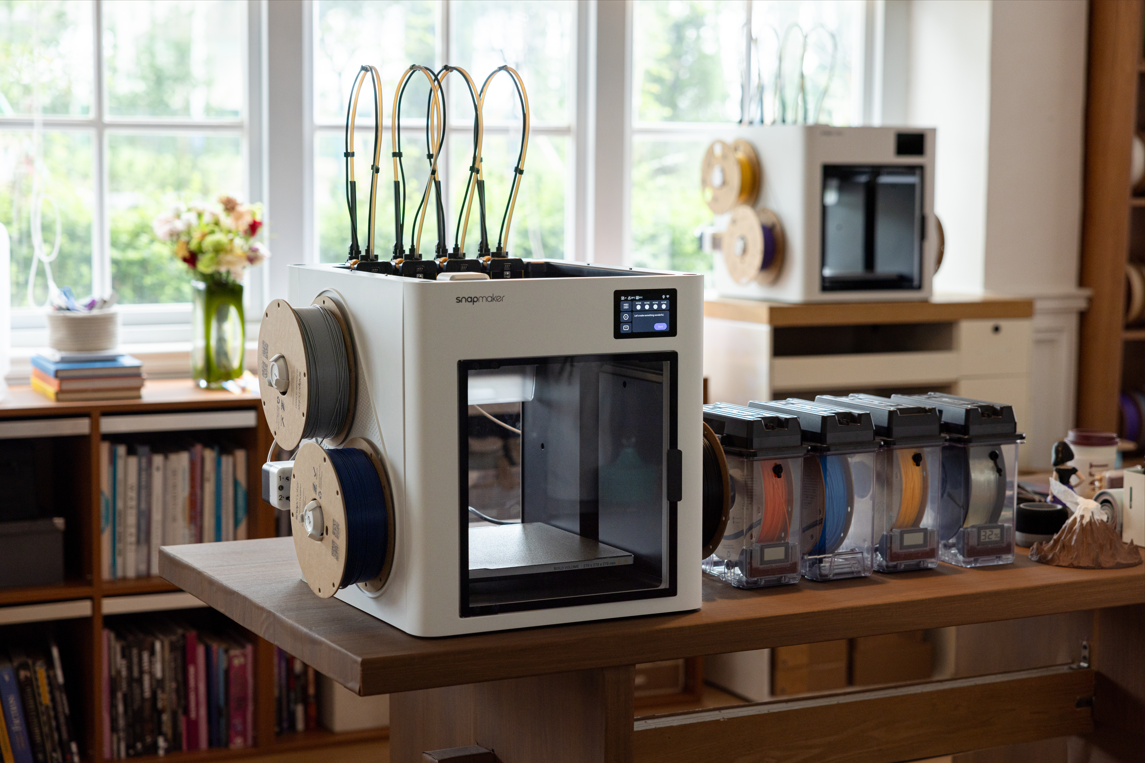

Snapmaker U1 3D Printer

1,200.00د.ا

Product Overview

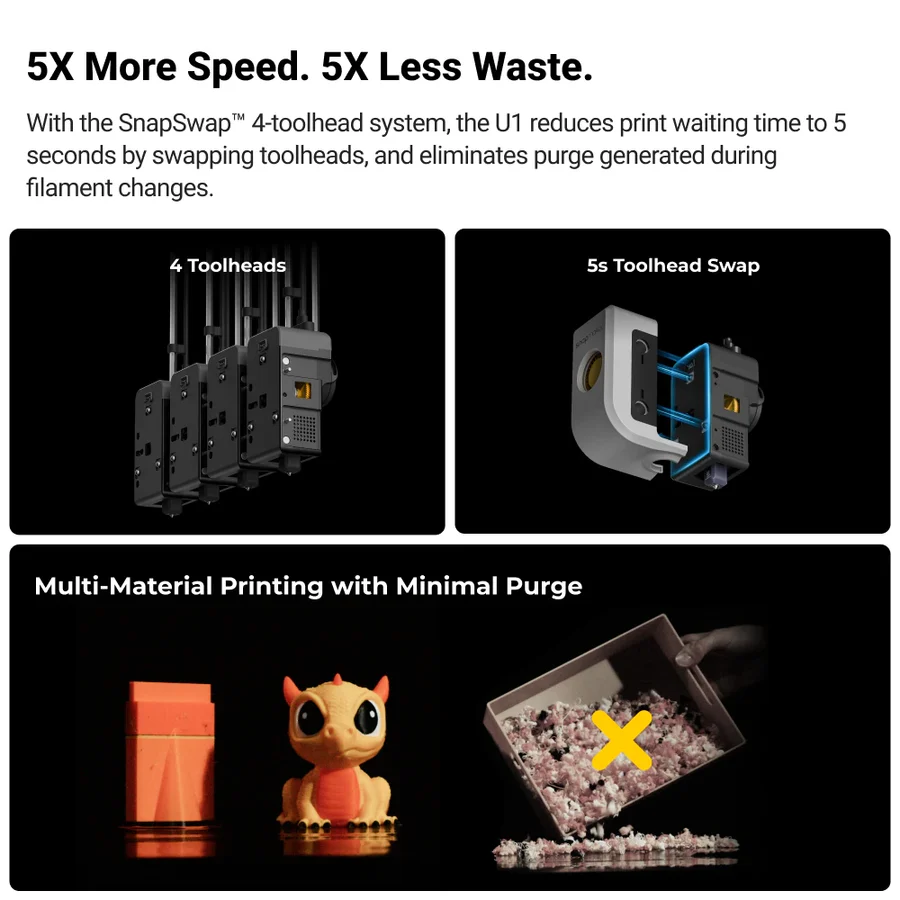

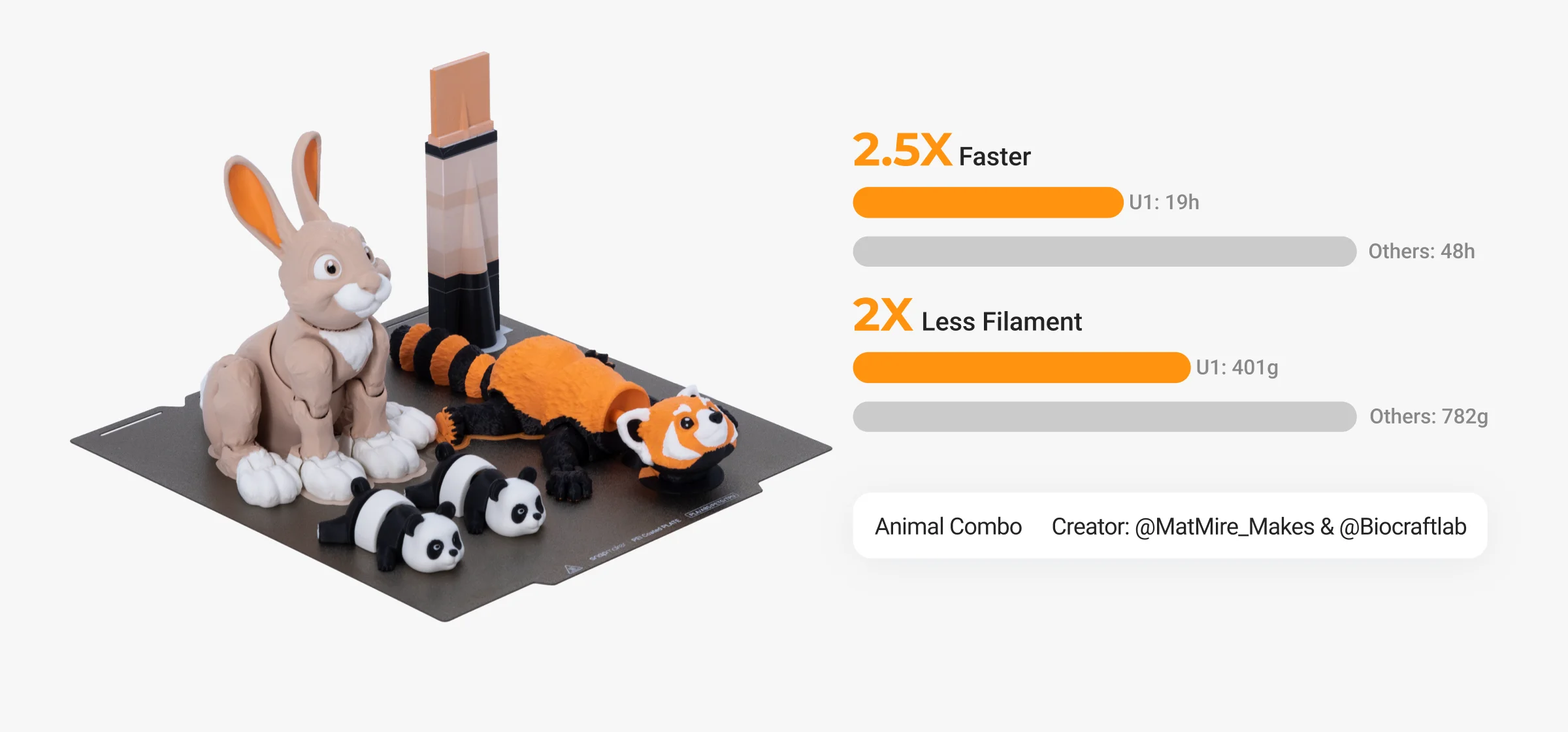

• Smooth Printing with 5X More Speed and 5X Less Waste
• SnapSwap™ 4-Toolhead System with 5s Tool Change
• Multi-Color & Multi-Material Printing
• 4 Toolheads Work As One
• Auto Filament Loading

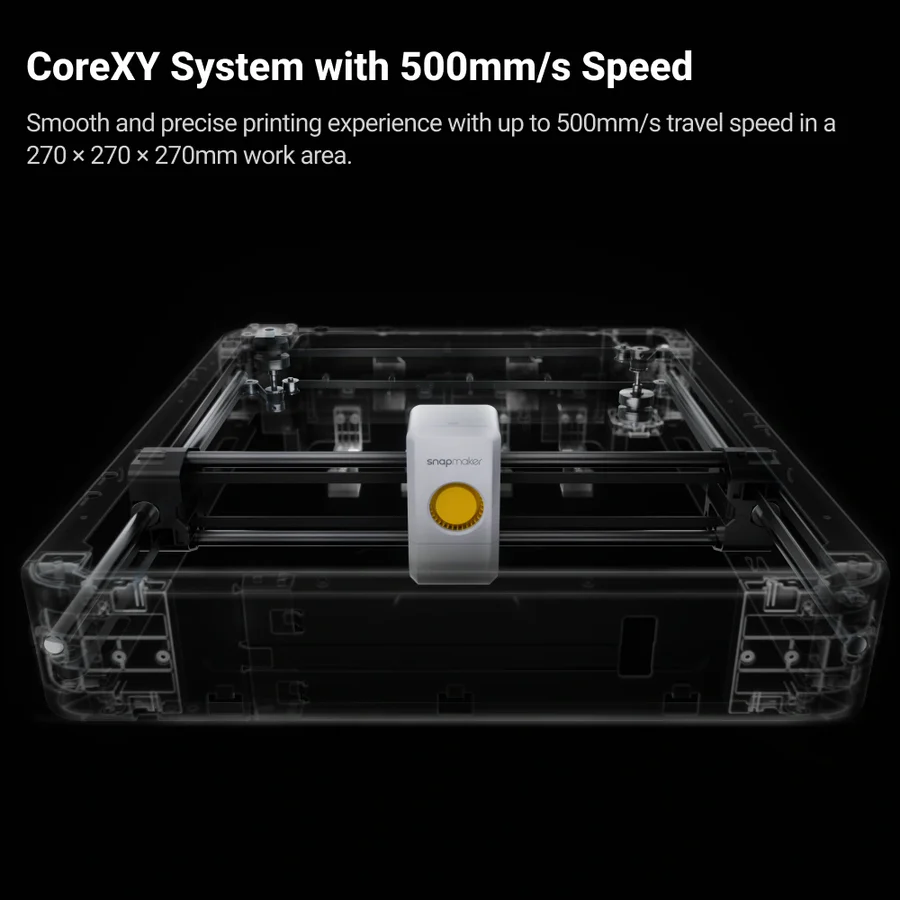

• 500 mm/s Max Speed, Up to 20,000 mm/s² Acceleration
• 270*270*270mm³ Build Volume

Add to Wishlist
Add to Compare
Category: Brand:
Snapmaker U1 3D Printer

1,200.00د.ا

Add to wishlist



snapmaker

Snapmaker U1 3D Printer Specifications

General

Specification Details
Product Snapmaker U1 3D Printer
Dimensions 584 × 499 × 730 mm
Weight 18.2 kg

Printing Properties

Specification Details
Printing Technology Fused Deposition Modeling — FDM
Build Volume 270 × 270 × 270 mm
Maximum Toolhead Speed 500 mm/s
Maximum Acceleration 20,000 mm/s²

Toolhead & Nozzle

Specification Details
Included Toolheads 4 toolheads
Maximum Hot End Flow 32 mm³/s
Nozzle Material Stainless steel
Maximum Nozzle Temperature 300°C
Nozzle Diameter 0.4 mm
Filament Diameter 1.75 mm
Part Cooling Main and auxiliary part cooling fans

Heated Bed

Specification Details
Build Plate Flexible steel sheet with PEI surface
Maximum Heated Bed Temperature 100°C

Supported Filament Types

Configuration Supported Materials
Basic Material Compatibility PLA, PETG, TPU, PVA, PCTG
With Optional Top Cover PLA, PETG, TPU, PVA, PET, ABS, ASA, PA, PC
With Top Cover & Hardened Steel Nozzle PLA, PETG, TPU, PVA, PET, ABS, ASA, PA, PC, carbon-fiber-reinforced polymers, glass-fiber-reinforced polymers

Electronics & Connectivity

Specification Details
Touchscreen 3.5-inch touchscreen, 320 × 480 resolution
Data Transmission Wi-Fi 2.4 GHz IEEE 802.11 b/g/n, USB flash drive
Storage 26 GB eMMC
Built-in Camera 2 MP chamber camera
Maximum Input Power 1150 W at 220–240 V~, 400 W at 100–120 V~
Maximum Input Current 6 A at 220–240 V~, 4 A at 100–120 V~

Auto-Calibration Features

Feature Details
Heated Bed Leveling Mesh bed leveling
Active Vibration Control Accelerometer and input shaping calibration
Automatic Flow Compensation Pressure advance calibration
Automatic Toolhead Offset Calibration Coordinate measuring calibration

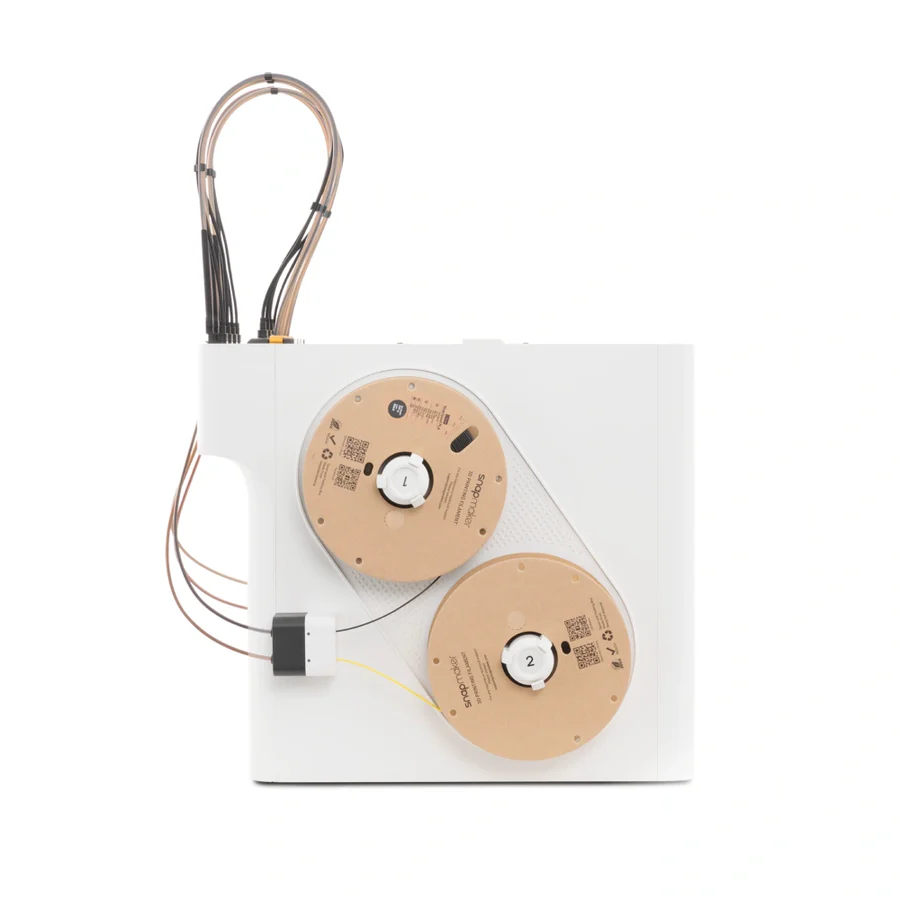

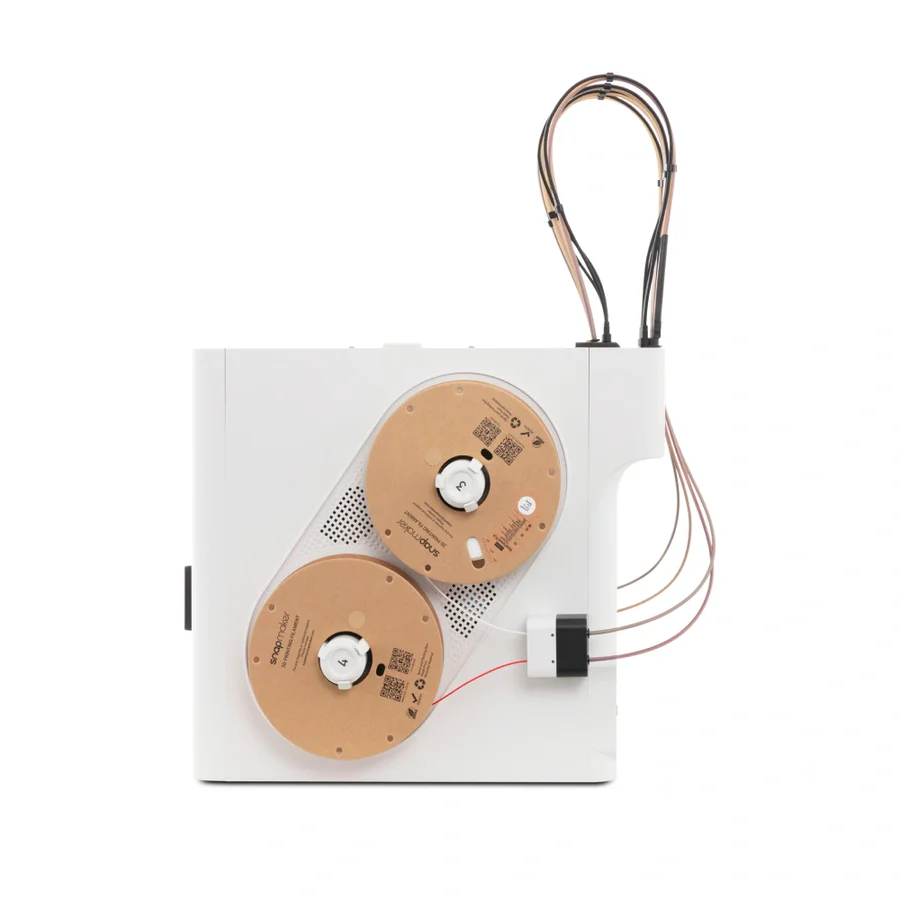

Automatic Filament System

Feature Status
Auto-Feed Supported
Backup Mode Supported
Filament RFID Recognition Supported

Failure Detection & Safety Features

Feature Status
Air Printing Detection Supported
Filament Run-Out Detection Supported
Power Loss Recovery Supported
Toolhead Swap Error Detection Supported
Build Plate Presence Detection Supported
Build Plate Obstruction Detection Supported

Software

Specification Details
Supported Slicer Snapmaker Orca, OrcaSlicer
Mobile App Snapmaker App
Desktop Operating Systems Windows, macOS, Linux
Mobile Operating Systems Android, iOS
Firmware Klipper

What’s in the Box

  1. Snapmaker U1 3D Printer with textured PEI steel sheet × 1
  2. Tool and accessory box × 1
  3. Toolhead with hot end × 4
  4. SnapSpeed PLA filament × 4
  5. Filament holder × 4
  6. Safety Guidelines × 1
  7. Quick Start Guide × 1
  8. Filament feeder × 2
  9. Waste collector × 1
  10. Toolhead cable × 4
  11. AC power cable × 1

snapmaker
