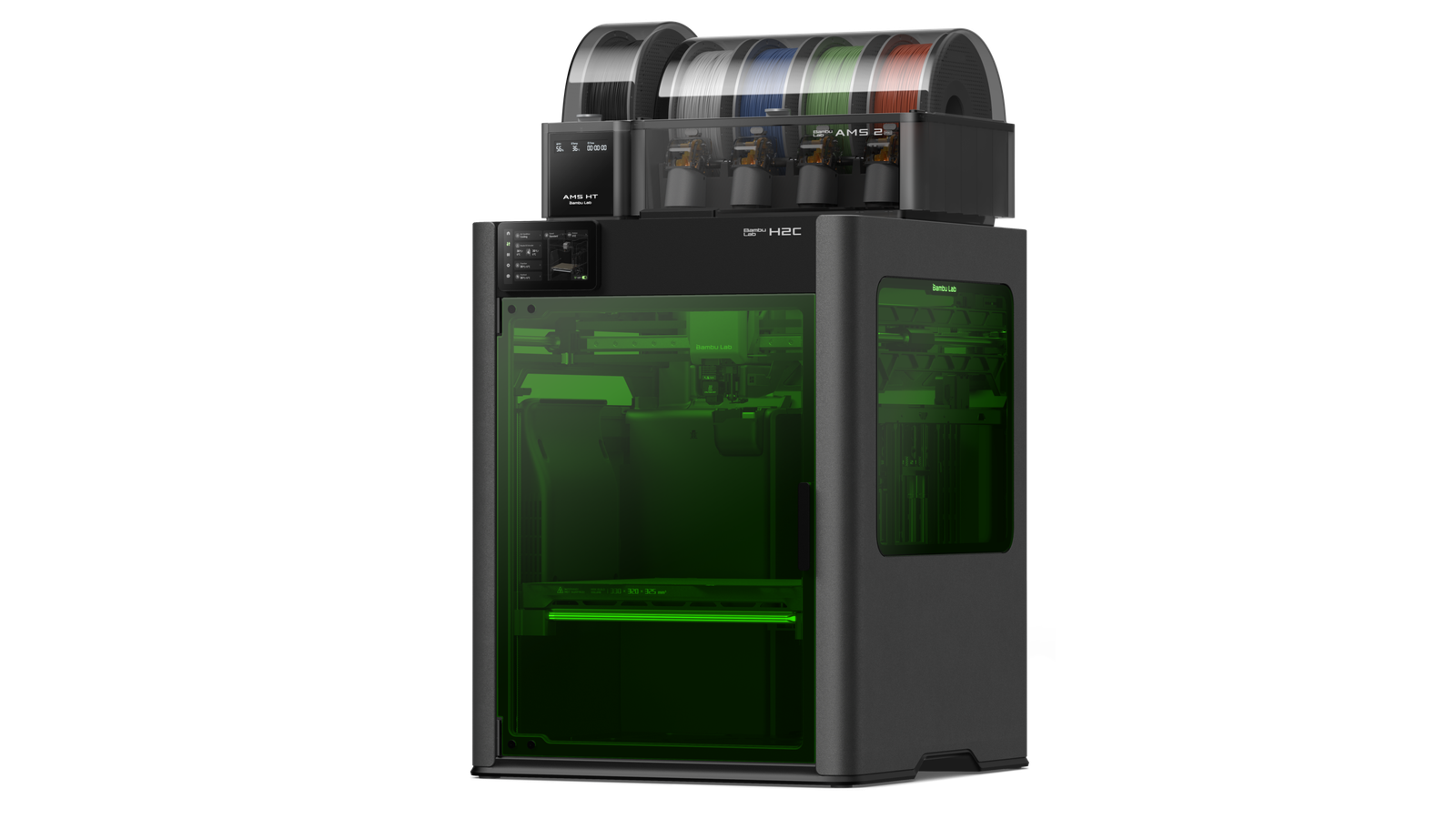

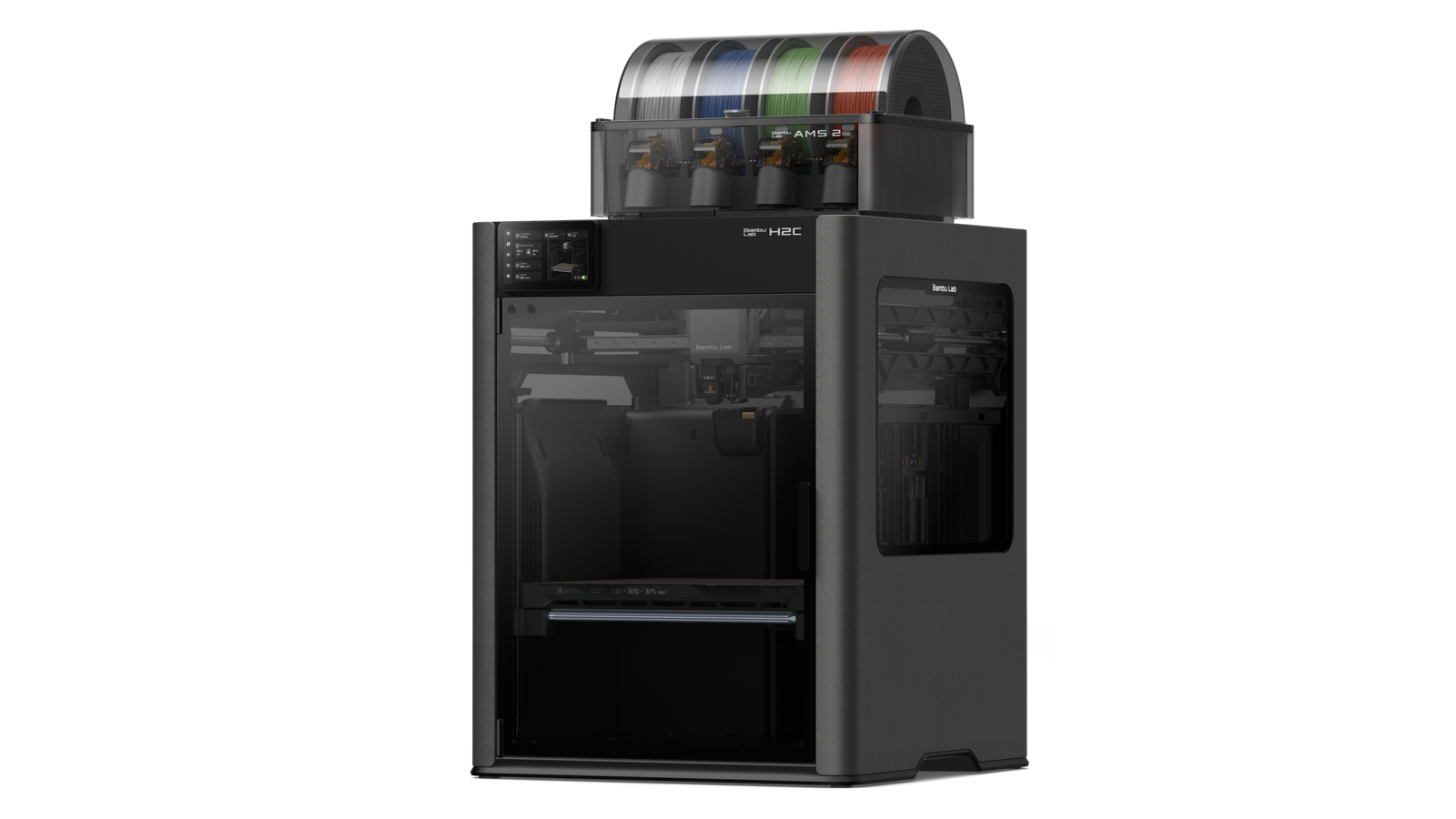

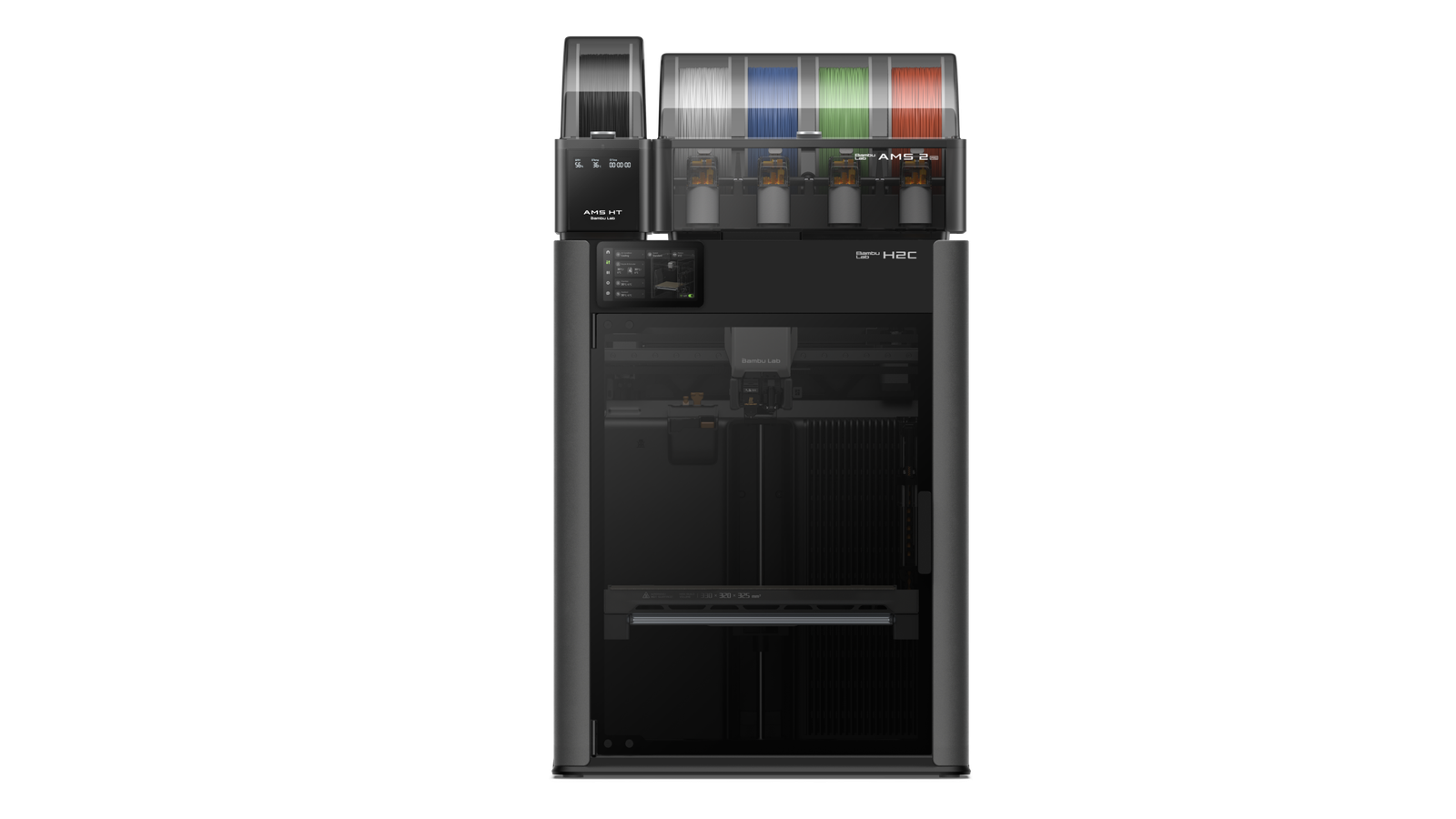

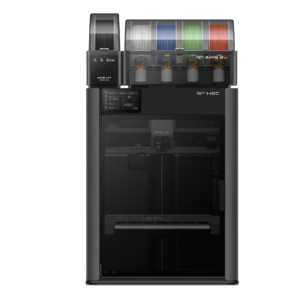

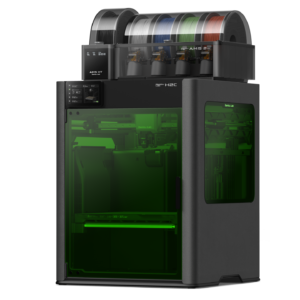

H2C Specs
| Item | Specifications | |
| Printing Technology |
Fused Deposition Modeling
|
|
| Body | Build Volume (W*D*H) |
Single Nozzle Printing: 325*320*320 mm³ (Left)
Single Nozzle Printing: 305*320*325 mm³ (Right)
Dual Nozzle Printing: 300*320*325 mm³
Total Volume for Two Nozzles: 330*320*325 mm³
|
| Chassis |
Aluminum and Steel
|
|
|
Outer Frame
|
Plastic and Glass
|
|
| Physical Dimensions | Physical Dimensions |
492*514*626 mm³
Recommended Space for Printer: 700mm*700mm*1100mm
|
| Net Weight |
32.5 kg
(Gross Weight: H2C AMS Combo 44.7 kg; H2C Laser Full Combo-10W 49.0kg;
H2C Laser Full Combo-10W 49.5 kg)
|
|
| Toolhead | Extruder Gear | Hardened Steel |
| Nozzle | Hardened Steel | |
| Max Nozzle Temperature | 350 °C | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
|
Filament Cutter
|
Built-in
|
|
| Filament Diameter | 1.75 mm | |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor | |
| Heatbed |
Build Plate Material
|
Flexible Steel Plate
|
|
Included Build Plate Type
|
Textured PEI Plate
|
|
